Variable speed control with soft starting motor features full time electronic feedback that maintains motor speed through the cut. Dual LED’s and clear sub base ensure maximum visibility, adjustment ring enables controlled bit depth changes, large, low-pressure spindle lock button, multiple shaft lock detents, depth ring, clamping mechanism and spring loaded release tabs. Specs: 7.0 amps, 16,000-27,000 RPM no load speed, 1/4″ collet diameter, 1.5″ plunge stroke, 4″ base dimension, 12 position spindle lock, weighs 4.1 lbs. Includes: motor, standard base, wrench and instruction manual.

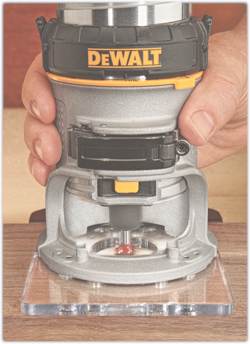

Combining power, ease-of-use, ergonomic features and innovations designed for visibility, control and overall performance, the DEWALT DWP611 compact router can handle a variety of applications–from small bevel cuts to large edge profiles and heavy flush trimming. In addition to its beefy 1-1/4 horsepower motor, the DWP611 is equipped with dual LED lights for ample illumination. This package comes with a fixed base, but it’s also available as a kit with both fixed and plunge bases.
Power and Performance
The DWP611 compact router features a 1-1/4 peak HP motor that delivers significantly more power than competitors’ models to help you be as productive as possible. The variable speed control helps you to better manage the tool and determine the speed that is best suited for the application at hand. A low, contoured grip that is close to the work surface also contributes to an excellent level of control–providing both precision and productivity on the job site. The soft starting motor features full time electronic feedback that maintains motor speed through the cut. An adjustment ring enables controlled bit depth changes to within 1/64-inch.
Comfort and Convenience
The fixed base’s dual LEDs and clear sub-base ensure maximum visibility in operation. The extended 1/4-inch router collet provides greater bit contact with the bit shaft than traditional routers, allowing you a firm grip on the bit and less vibration. The D-shaped sub-base provides stability and flatness when running edge profiles, and the spindle lock has been designed to greatly improve the ease of bit change by incorporating a large button that can be actuated with the same hand that stabilizes the router.
The router also features two tabs that allow for a quick and simple base release, and a new base/adjustable clamp design so the motor location is maintained through the toughest applications.
This DEWALT tool is backed by three-year limited warranty covering any defects due to faulty materials or workmanship (from the date of purchase).
What’s in the Box
DEWALT DWP611 compact router with LEDs; standard fixed base; wrench; operating instructions
Variable speed control feature enables bit speed to be optimized for changing applications (view larger).
Durable 1.25hp motor delivers the power to meet the toughest applications
Variable speed control feature enables bit speed to be optimized for changing applications
Soft-starting motor features full-time electronic feedback that maintains motor speed through the cut
Dual LED’s and clear sub-base ensure maximum visibility in operation
Adjustment ring enables controlled bit depth changes to within 1/64-inch
